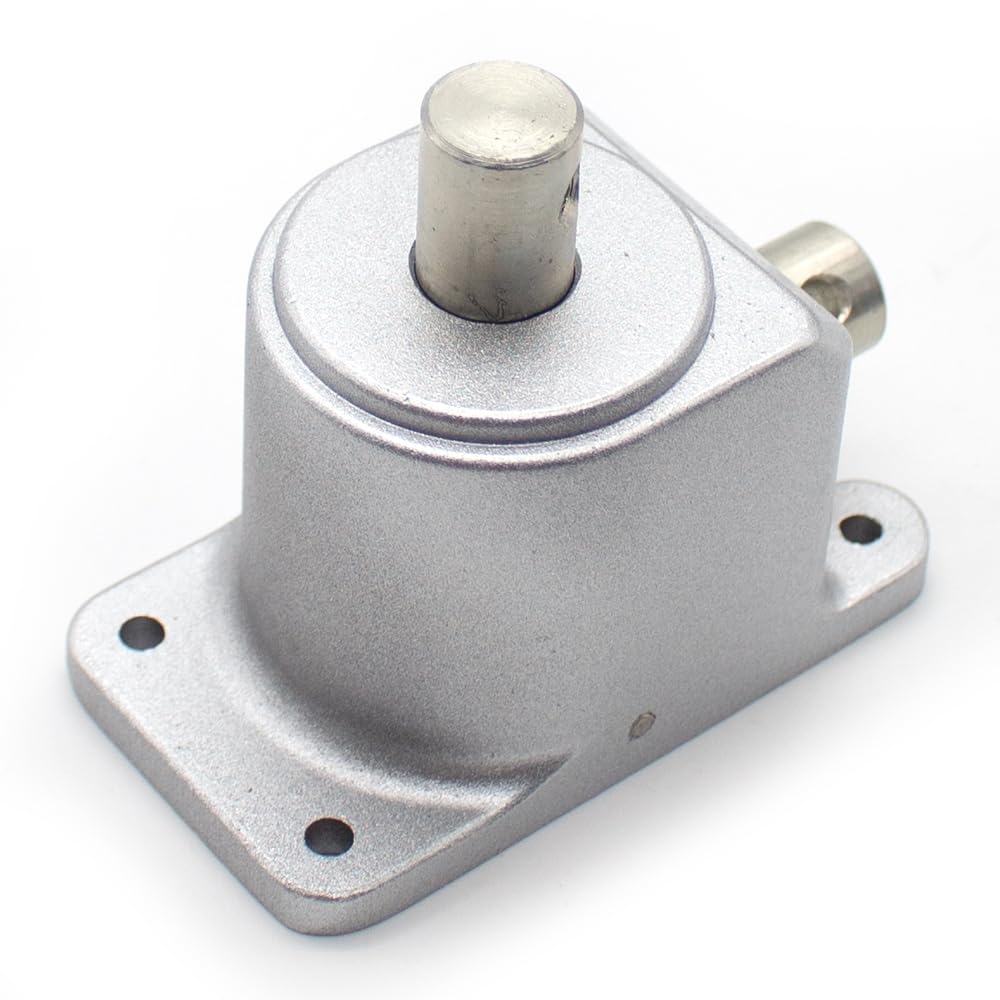

Right Angle Tapered Bevel Gearbox 1.5 Module 20 Teeth 90° Angle Drive Steering Gear Device Mechanical DIY Module Speed Ratio 1:1

Right Angle Tapered Bevel Gearbox 1.5 Module 20 Teeth 90° Angle Drive Steering Gear Device Mechanical DIY Module Speed Ratio 1:1 Features: Right Angle Bevel Gearbox for Simple DIY Mechanical Application Built-in 1.5 module 20 teeth bevel gears, 15mm/0.6" shaft, max torque rating: 5N.M/3.6 ft.lbs, max rotation speed: 1000rpm Motor drive can be realized with coupling and belt pulley gear Aluminum Alloy & #45 Steel It's simple steering gear, can not used for high torque and high accuracy CNC application Specifications: Name: Right Angle Tapered Bevel Gearbox Shell material: aluminum alloy (surface painting treatment) Gear and shaft material: 45# steel Number of module: 1.5 Number of teeth: 20 teeth Shaft diameter: 15MM Shaft length: 20MM Number of shafts: 2 shafts Rotation direction: reverse Rotational speed: 1000RPM Load: 500N Weight: 350G

• Right Angle Bevel Gearbox for Simple DIY Mechanical Application
• Built-in 1.5 module 20 teeth bevel gears, 15mm/0.6" shaft, max torque rating: 5N.M/3.6 ft.lbs, max rotation speed: 1000rpm
• Motor drive can be realized with coupling and belt pulley gear
• Aluminum Alloy & #45 Steel
• It's simple steering gear, can not used for high torque and high accuracy CNC application
